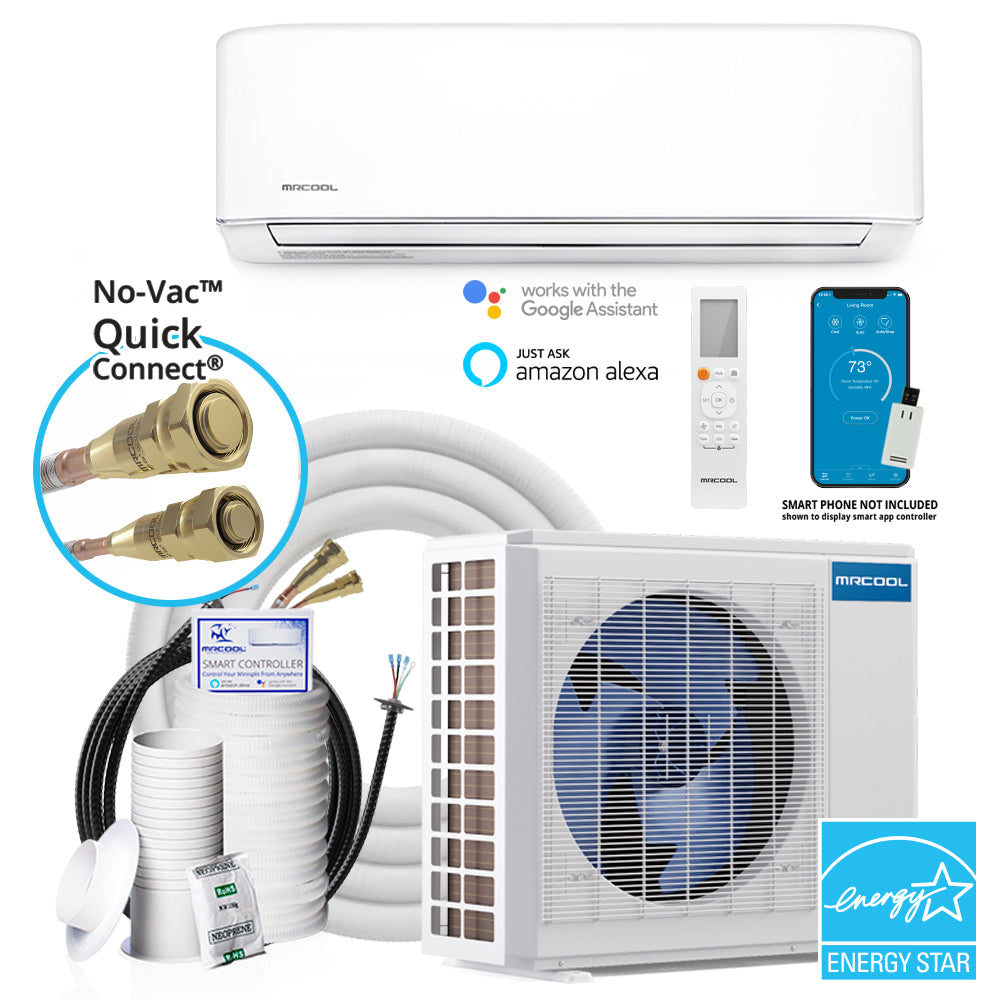

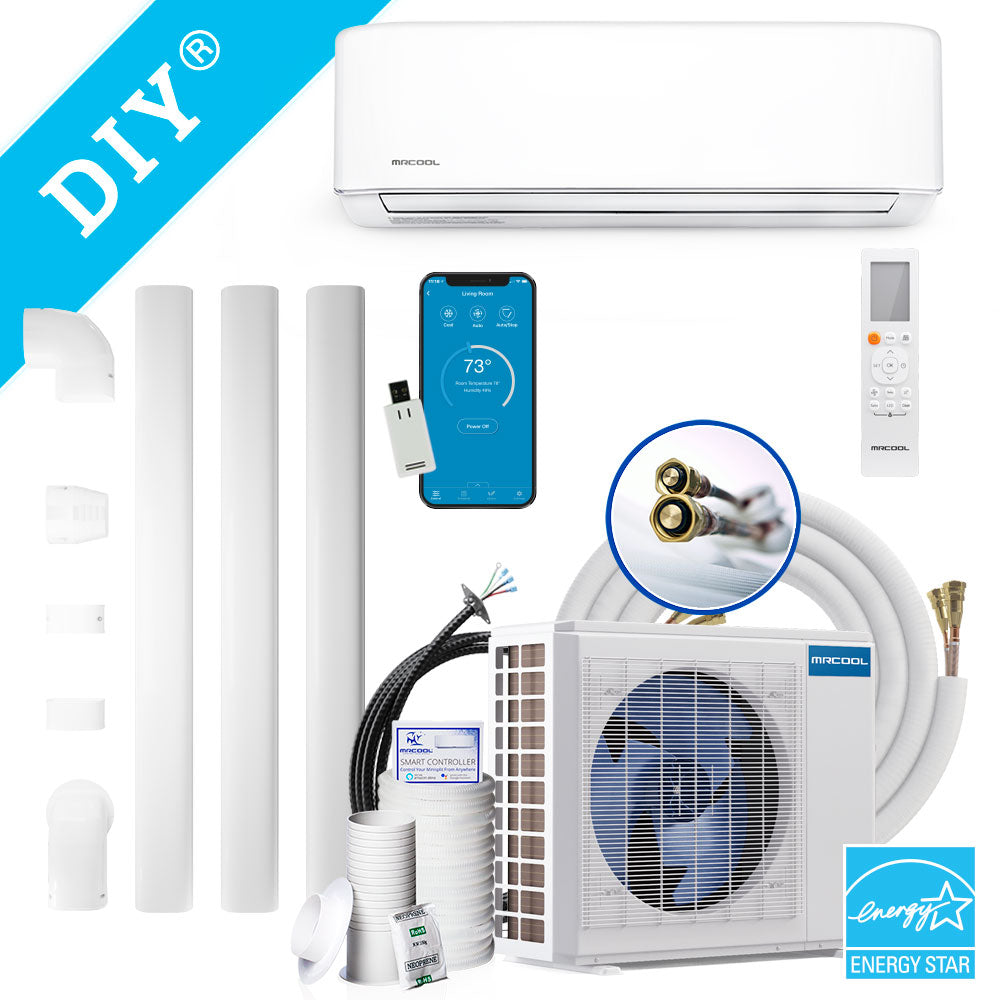

The MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.
BRAND NAME |
MRCOOL |
SERIES |
DIY 4th Gen E STAR |
MODEL |
DIY-24-HP-WM-230C25 |
GTIN |
00810035935174 |
UPC |
810035935174 |
UNIT TYPE |
Mini-Split |
SEER |
20.5 |
SEER2 |
20.5 |
EER |
12.5 |
EER2 |
12.5 |
COP 47 |
3.15 |
HSPF |
hspf4/hspf5 : 10.5/9 |
HSPF2 |
hspf2-4/hspf2-5 : 9.2/7.1 |
CFM |
605.88/505.88/364.71 |
TONNAGE |
2 |
COOLING CAPACITY |
23000BTU |
HEATING CAPACITY |
25000 BTU |
VOLTAGE |
208-230 V |
PHASE |
1 |
CYCLE |
60 Hz |
MAX FUSE BREAKER |
35 A |
MIN CIRCUIT AMPACITY |
22 A |
COLOR |
White |
COLOR FAMILY |
White |
RATED LOAD |
0.45 A |
MAX COVERAGE AREA |
Up to 1000 sqft |
ZONE CAPACITY |
1 |
REFRIGERANT TYPE |
R-410A |
REFRIGERANT VOLUME |
81.13 oz |
DECIBEL RATING |
48.5/43.5/33 |
DECIBEL RATING LOW |
33 dBA |
DECIBEL RATING HIGH |
48.5 dBA |
OSCILLATION |
4-W |
INVERTER |
Yes |
MIN AMBIENT COOL |
-13F - 122F |
MIN AMBIENT HEAT |
-13F - 75F |
LINE SET LENGTH |
25ft |
MAX LINESET LENGTH |
75 ft |
LIQUID LINE SIZE |
3/8 in |
SUCTION LINE SIZE |
5/8 in |
COMPRESSOR MOTOR TYPE |
Twin-Rotary |
CONDENSER FAN MOTOR RPM |
850/750/700 |
BLOWER MOTOR RPM |
1200/1000/700 |
AUXILIARY HEATER INCLUDED |
No |
AUXILIARY HEATER AVAILABLE |
No |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REMOTE CONTROL INCLUDED |
Yes |
UL LISTED |
Yes |
ENERGY STAR CERTIFIED |
Yes |
AHRI CERTIFIED |
Yes |
REGISTERED WARRANTY |
Limited Lifetime Compressor |
BASE WARRANTY |
5-year Parts/7-year Compressor |
BASE PARTS WARRANTY |
5-year Parts |
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY |
7-year Compressor |
HAS BATTERIES |
Yes |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
RESTRICTED STATES |
GU;PR;VI |
CONDENSER DEPTH |
16.14 in |
CONDENSER HEIGHT |
31.89 in |
CONDENSER WIDTH |
37.24 in |
CONDENSER WEIGHT |
125.22 lbs |
AIR HANDLER DEPTH |
8.90 in |
AIR HANDLER HEIGHT |
13.19 in |
AIR HANDLER WIDTH |
42.52 in |
AIR HANDLER WEIGHT |
35.27 lbs |
